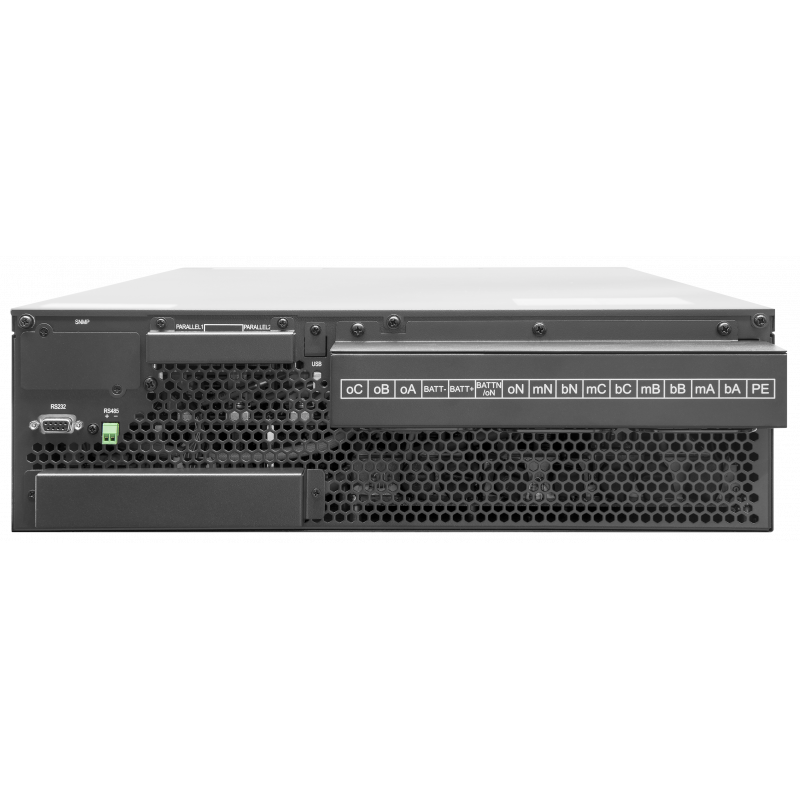

Uninterruptible power supply SNR-UPS-ONRT-15-INTXL33, on-line, 15kVA, 380-415VAC, 480VDC, non batteries

SNR-UPS-ONRT-15-INTXL33

$ 2,710.12
$ 3,939.71
On-line, Rack-Mounted, 15kVA/15kW, 3U, 380-415VAC (50/60Hz), 3ph+N+PE, 480VDC (settable even-number batteries from 32 to 44), USB/RS232/DRY CONTACT/SNMP (option)/PARALLEL KIT (option), 5"LCD, IP20, non batteries

Technical Specifications

  • Type of UPS Rack Tower
  • Weight, kg (1) 25
  • Operating temperature, °C (1) 0
    40
  • Phase 3
  • Input voltage 304 ~ 478 V
  • Battery type Lead-acid (external, ordered separately)
  • Type of UPS (1) On-line
  • Dimension, mm (1) 130 x 438 x 750

Product Info

Part number: SNR-UPS-ONRT-15-INTXL33

The uninterruptible power supply on-line, 15 kVA (PF1.0) of the Intelligent series, is made according to the scheme with double conversion (on-line). It provides a load with a stabilized sinusoidal voltage and is designed to power high-precision measuring and medical equipment and protect servers, telecommunications, networks, and industrial equipment.

Power failures can occur at unpredictable times, and the quality of electricity can also change over time. Power supply problems are dangerous for IT equipment, leading to damage to important data, loss of unsaved work sessions, and equipment failure - all this can result in many hours of downtime and expensive repairs. Intelligent series uninterruptible power supplies easily solve these problems, providing high reliability.

The UPS operates using digital signal processing (DSP) technology, which ensures the highest reliability and operational characteristics with the unique compactness of the device.

Two installation modes are available: Tower or Rack Mount installation, depending on the available space and user considerations. You can choose the appropriate installation mode according to the actual conditions. Removable support legs for installation in the Tower position are optional.

Extended input voltage range (304~478V(AC)) allows you to use battery energy less often, which prolongs their service life. The input power factor equal to one eliminates the negative impact of the UPS on the input power grid, which, combined with a unique input frequency range, provides high-quality voltage when powered not only from the most problematic power grid but also from generator sets.

The LCD can change its orientation according to the type of housing installation: vertically or horizontally. On the LCD, you can control and monitor all parameters and operating status and check for alarm information.
Main advantages:
  • Output power factor equal to 1
  • The dimensions allow the UPS to be installed in a standard 19ʺ rack or on the floor and has a height of only 3U
  • Support for the possibility of parallel connection of up to 4 UPS. Provision of redundancy according to the scheme up to 3+1
  • The control panel is a 5-inch LCD that is user-friendly and allows you to understand better the operating status and parameters of the UPS
  • Preset functions: RS232, RS485, Cold start, dry contact; Optional: LBS, Parallel card, USB, SNMP card
  • Flexible battery configuration from 32 to 44. Maximum charging power 20% of the output power
  • Emergency shutdown function via remote emergency power-off port (EPO - Emergency Power-off)
  • Using DSP digital control technology, the system has high stability, self-protection, and fault diagnosis capability
  • Thanks to the intelligent design of the fan, the speed can be automatically adjusted according to the load condition, contributing to the reduction of energy consumption and noise
  • An intelligent charging mode is used to increase the battery life
  • No impact on the input network

Support for the possibility of parallel connection of up to 4 UPS. Provision of redundancy according to the scheme up to 3+1


Technical Specifications

  • Type of UPS Rack Tower
  • Weight, kg (1) 25
  • Operating temperature, °C (1) 0
    40
  • Phase 3
  • Input voltage 304 ~ 478 V
  • Battery type Lead-acid (external, ordered separately)
  • Type of UPS (1) On-line
  • Dimension, mm (1) 130 x 438 x 750
  • COM port RS232
    RS485)
  • Maximum number of lines 5
  • Percentage of moisture 0-95%
  • Number of batteries 40
  • Hour battery rating, A 9
  • Battery charging current, A 5,3
  • Expiratory phase 3
  • Output Voltage 380V/400V/415V
  • Battery voltage 480
  • Input connections Terminal terminal: three phases, neutral and ground
  • Output power factor, RF 1
  • Power, VA 15000
  • Power, W 15000
  • Efficiency in mains operation 95,5
  • Intput frequency, Hz 50/60
  • Output frequency, Hz 50/60
