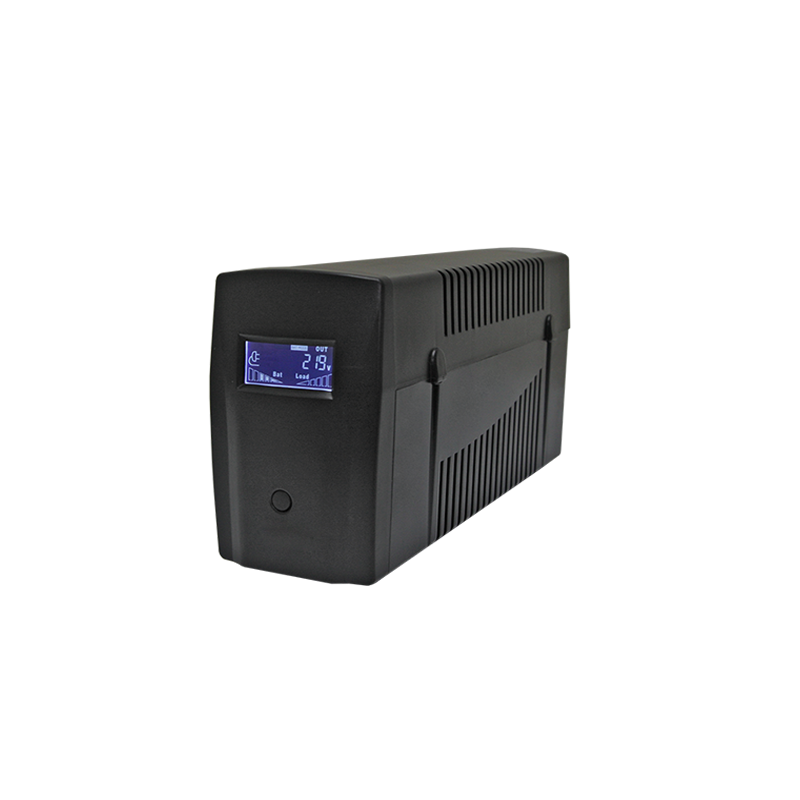

Uninterruptible power supply SNR-UPS-LID-800, Line-Interactive, 800VA, 220-240VAC, 12VDC (1x7Ah)
SNR-UPS-LID-800
$ 59.14
$ 64.18
Line-Interactive, Tower, 800VA/480W, 220-240VAC (50/60Hz), 1ph+N+PE, 12VDC (1x7Ah), USB, RJ-45, 2 x SCHUKO (Outputs), LCD
Technical Specifications
- Type of UPS Desktop
- Total capacitance, A 7.2
- Weight, kg (1) 6,7
-
Operating temperature, °C (1)
0
40 - Phase 1
- Input voltage 165-275 V (AC)
- Battery type Lead-acid
- Type of UPS (1) Line-interactive
Product Info
Part number: SNR-UPS-LID-800Linear-interactive uninterruptible power supplies (UPS) SNR, LID-XXXX series, occupy an intermediate position between simple, inexpensive standby power sources ("Off-Line") and efficient, expensive double-conversion energy UPS ("On-Line"). The main difference of the LID-XXXX series uninterruptible power supply (UPS) from backup ("Off-Line") sources is that it is able to provide normal power to the load when there are deviations in the parameters of the network voltage, without switching to battery mode, which in turn has a positive effect on the service life of the built-in UPS batteries.
The LID series UPS is equipped with a "cold start" function, which allows the UPS to be forcibly turned on in the absence of mains power, as well as an "auto-start" function, which allows the load power to be automatically restored when mains power is restored, without the need for additional manipulation.
The built-in USB port allows for controlling the main parameters of the UPS from a computer, as well as performing a proper automatic shutdown. In addition, the UPS is equipped with a multifunctional LCD display with backlight, which displays current information about the UPS operation. UPS of this series provide output voltage with an approximated sine wave and are mainly intended for connecting equipment with switching power supplies such as personal computers, LAN nodes, and other electronic devices equipped with such power sources, which, in turn, are practically insensitive to the shape of the power supply sine wave and its short-term drops (switching to battery mode).The advantage of linear-interactive UPSs is their comparative simplicity and reliability, lower cost compared to "On-line" solutions, as well as high efficiency in "from the grid" mode. The disadvantages include a slight delay in switching (a few milliseconds) to "battery mode" and a stepped (less smooth compared to "On-line") adjustment of the output voltage.
Features:
- Built-in autotransformer regulates output voltage (AVR)
- Wide range of automatic regulation of input voltage
- Digital microprocessor control
- Indication of UPS operating modes
- Approximated sinusoidal output voltage when operating on battery power
- "Cold start" function
- Transformer thermal protection
- USB port for UPS status monitoring
- "Autostart" function
- Self-diagnosis
- Protection against overcharging, deep discharge
- Protection against short circuits and overloads
Package contents:
- User manual
- USB interface cable
- Spare fuses
- CD with software
Technical Specifications
- Type of UPS Desktop
- Total capacitance, A 7.2
- Weight, kg (1) 6,7
-
Operating temperature, °C (1)
0
40 - Phase 1
- Input voltage 165-275 V (AC)
- Battery type Lead-acid
- Type of UPS (1) Line-interactive
- Dimension, mm (1) 165 x 95 x 340
- COM port USB
- Maximum number of lines 1
- Percentage of moisture 0 – 95% (non condensate)
- Number of batteries 1
- Hour battery rating, A 7
- Battery charging current, A 1
- Expiratory phase 1
- Output Voltage 220 V ±10% (AC)
- Type and number of outlet sockets Schuko x 2
- Battery voltage 12
- Input connections Built-in power cord with Schuko plug
- Backup power supply time at 50% load 6 mins
- Output power factor, RF 0,6
- Power, VA 800
- Power, W 480
-
Efficiency in mains operation
70% power mode from the battery
Power mode from the network 96% - Intput frequency, Hz 50/60 Hz ±10% (autodetection)
- Output frequency, Hz 50/60 Hz ±10% (auto-detection)
