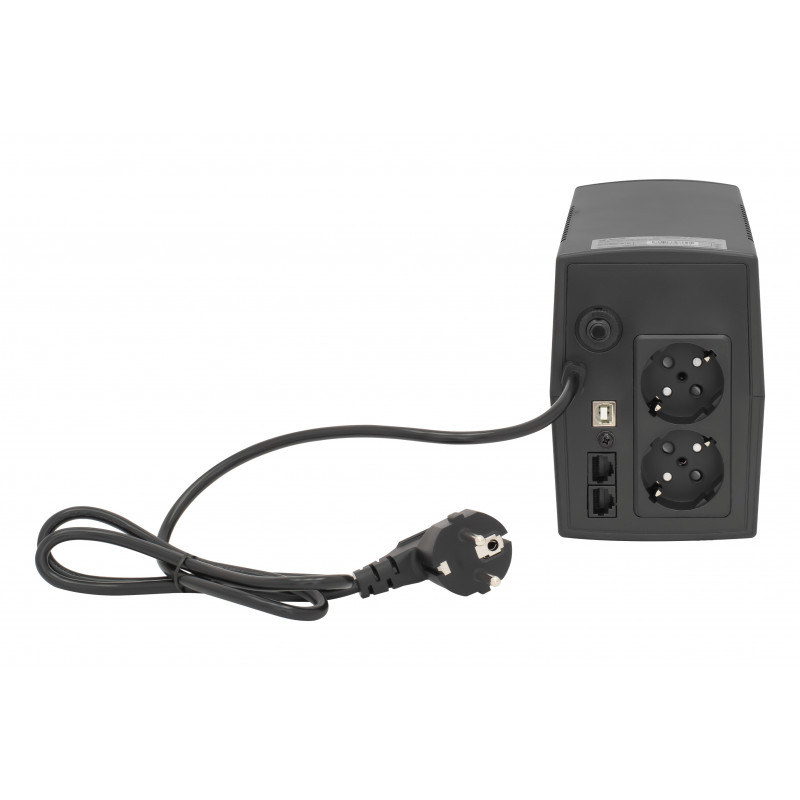

Uninterruptible power supply SNR-UPS-LID-800-LED, Line-Interactive, 800VA, 220-240VAC, 12VDC (1x7Ah)
SNR-UPS-LID-800-LED
$ 54.90
Line-Interactive, Tower, 800VA/480W, 220-240VAC (50/60Hz), 1ph+N+PE, 12VDC (1x7Ah), USB, RJ-45, 2 x SCHUKO (Outputs), LED
Technical Specifications
- Type of UPS Desktop
- Total capacitance, A 7.2
- Weight, kg (1) 6,7
-
Operating temperature, °C (1)
0
40 - Phase 1
- Input voltage 165-275 V (AC)
- Battery type Lead-acid
- Type of UPS (1) Line-interactive
Product Info
Part number: SNR-UPS-LID-800-LEDLinear-interactive uninterruptible power supplies (UPS) SNR, LID-XXXX-LED series, occupy an intermediate position between simple, inexpensive standby power supplies ("Off-Line") and efficient, expensive UPS with double energy conversion ("On-Line"). The main difference of the LID-XXXX-LED series UPS from offline backup sources is that it is able to provide normal power to the load in case of deviation of network voltage parameters without switching to battery mode, which positively affects the service life of the built-in UPS batteries. The LID series UPS is equipped with a "cold start" function that allows the UPS to be forcibly turned on in the absence of mains voltage, as well as an "auto start" function that allows the load power to be automatically restored when the mains voltage is restored without the need for additional manipulation. The built-in USB port allows for controlling the main parameters of the UPS from a computer, as well as performing a proper automatic shutdown. In addition, the UPS is equipped with a multifunctional LED indicator that displays the state of the electrical network, the load level, the degree of battery discharge, and signals malfunctions. UPS of this series provide output voltage with an approximated sine wave and are mainly intended for connecting equipment with pulse power sources: personal computers, LAN nodes, and other electronic devices equipped with similar power sources, which, in turn, are practically insensitive to the shape of the sine wave of the power supply and its short-term drops (switching time to battery mode). The advantage of linear-interactive UPSs is their relative simplicity and reliability, lower cost compared to "On-line" solutions, and high efficiency in "from the mains" mode. The disadvantages include a slight delay in switching (a few milliseconds) to battery mode and a stepped (less smooth compared to "On-line") regulation of the output voltage.
Features:
- Built-in autotransformer regulates output voltage (AVR)
- Wide range of automatic regulation of input voltage
- Digital microprocessor control
- Indication of UPS operating modes
- Approximated sine wave output voltage when operating from battery
- "Cold start" function
- Transformer thermal protection
- "Auto start" function
- Self-diagnostics
- Protection against overcharging, deep discharge
- Protection against short circuits and overloads
Technical Specifications
- Type of UPS Desktop
- Total capacitance, A 7.2
- Weight, kg (1) 6,7
-
Operating temperature, °C (1)
0
40 - Phase 1
- Input voltage 165-275 V (AC)
- Battery type Lead-acid
- Type of UPS (1) Line-interactive
- Dimension, mm (1) 165 x 95 x 340
- Maximum number of lines 1
- Percentage of moisture 0 – 95% (non condensate)
- Number of batteries 1
- Hour battery rating, A 7
- Battery charging current, A 1
- Expiratory phase 1
- Output Voltage 220 V ±10% (AC)
- Type and number of outlet sockets Schuko x 2
- Battery voltage 12
- Input connections Built-in power cord with Schuko plug
- Backup power supply time at 50% load 6 mins
- Output power factor, RF 0,6
- Power, VA 800
- Power, W 480
-
Efficiency in mains operation
70% power mode from the battery
Power mode from the network 96% - Intput frequency, Hz 50/60 Hz ±10% (autodetection)
- Output frequency, Hz 50/60 Hz ±10% (auto-detection)
