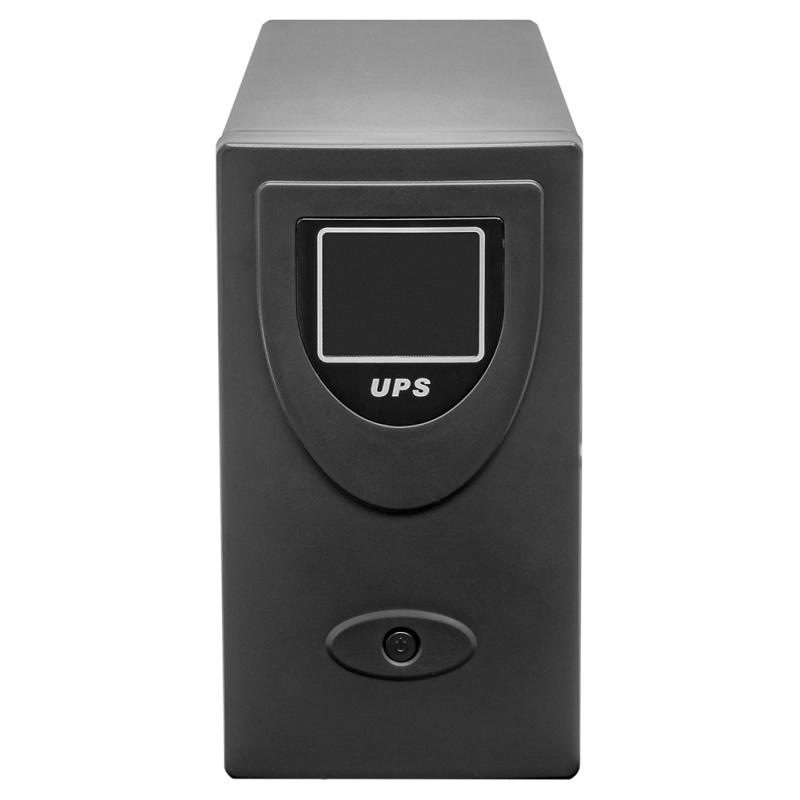

Uninterruptible power supply SNR-UPS-LID-2000, Line-Interactive, 2000VA, 220-240VAC, 24VDC (2x7Ah)
SNR-UPS-LID-2000
$ 149.00
Line-Interactive, Tower, 2000VA/1200W, 220-240VAC (50/60Hz), 1ph+N+PE, 24VDC (2x9Ah), USB, RJ-45, 2 x SCHUKO (Outputs), LCD
Technical Specifications
- Type of UPS Desktop
- Weight, kg (1) 14
-
Operating temperature, °C (1)
0
40 - Phase 1
- Input voltage 165-275 V (AC)
- Battery type Lead-acid
- Type of UPS (1) Line-interactive
- Dimension, mm (1) 220x125x400
Product Info
Part number: SNR-UPS-LID-2000Linear-interactive uninterruptible power supply sources (UPS) SNR are designed to protect personal computers, workstations, and servers equipped with switching power supplies. Thanks to the built-in battery, the UPS can continue to function even during a complete power outage, allowing the user to save data and properly shut down the operating system. SNR-UPS-LID uninterruptible power sources have a built-in autotransformer. The autotransformer regulates the output voltage when the mains voltage changes - if the mains voltage is excessively high, the autotransformer lowers the output voltage to an acceptable level, and if it is excessively low, it raises it. The autotransformer ensures the specified level of output voltage during fluctuations in mains voltage from nominal. The wide range of allowable mains voltages reduces the number of cases when the UPS switches to batteries and significantly extends the battery life. The SNR-UPS-LID UPS is equipped with a "cold start" function that allows the UPS to be forcibly turned on in the absence of mains power. The built-in USB port allows for control of the main parameters of the UPS from a computer, as well as for automatic shutdown. In addition, the UPS is equipped with a multifunctional LCD display that shows the state of the electrical network, the level of load, and the degree of battery discharge.
Features:
- Voltage increase and decrease AVR
- Wide range of automatic regulation of input voltage
- Digital microprocessor control
- Indication of the main operating modes of the UPS
- Approximated sine wave output voltage when operating on battery
- "Cold start" function
- Multi-functional LCD display
- Thermal protection of the transformer
- USB port for UPS monitoring
- Self-diagnostics
- Protection against overcharging, deep discharge
- Protection against short circuits and overloads
Package contents:
- User manual
- USB interface cable
- Spare fuses
- CD with software
Technical Specifications
- Type of UPS Desktop
- Weight, kg (1) 14
-
Operating temperature, °C (1)
0
40 - Phase 1
- Input voltage 165-275 V (AC)
- Battery type Lead-acid
- Type of UPS (1) Line-interactive
- Dimension, mm (1) 220x125x400
- COM port USB
- Maximum number of lines 1
- Percentage of moisture 0 – 95% (non condensate)
- Number of batteries 2
- Hour battery rating, A 9
- Battery charging current, A 1
- Expiratory phase 1
- Output Voltage 220 V ±10% (AC)
- Type and number of outlet sockets Schuko x 2
- Battery voltage 24
- Input connections Built-in power cord with Schuko plug
- Backup power supply time at 50% load 6 min
- Output power factor, RF 0,6
- Power, VA 2000
- Power, W 1200
-
Efficiency in mains operation
70% power mode from the battery
Power mode from the network 96% - Intput frequency, Hz 50/60 Hz ±10% (auto-detection)
- Output frequency, Hz 50/60 Hz ±10% (auto-detection)
