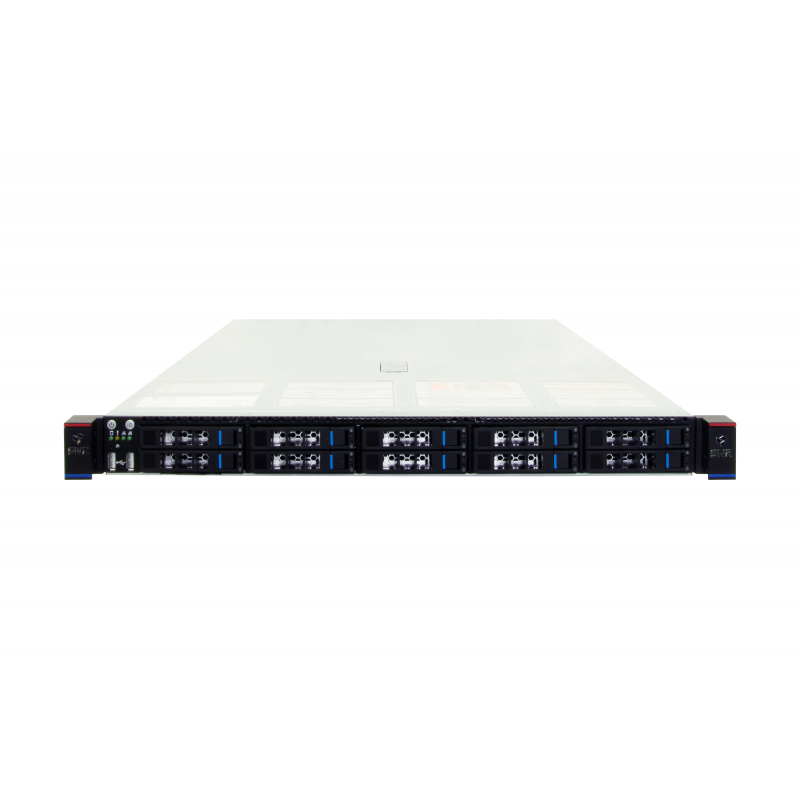

Barebone system SNR-SR1310RS, 1U, Scalable Gen3, DDR4, 10xHDD, RPSU
SNR-SR1310RS
$ 2,694.00
Server platform 1U, up to two Intel Xeon Scalable processors v3, 32xDDR4 RDIMM, 4x2.5" HDD, 2x1000Base-T, two 550W AC PS
Technical Specifications
- 10/100/1000BaseT interfaces 2
- M.2 supported (1) 2280
- NVDIMM supported Yes
- Processor type 3 Gen Intel Xeon Scalable
- DCPMM supported Yes
- Multi-operated caddy, 2.5/3.5" Available
- Number of PCI-E slot 2
- M.2 supported 2
Product Info
Part number: SNR-SR1310RSThe universal compact 1U high-performance server SNR-SR1310RS is designed to perform a wide range of tasks, including building high-performance servers, billing, databases (DB), and other roles.
Support:
- Processors with FCLGA4189 socket: up to 2 (not included in the package)
- DDR4 3200MHz ECC REG memory: up to 12TB
- 2.5" SATA hard drives: up to 10
- Possibility to install a hardware RAID controller: yes
Includes:
- Chassis SNR-SR1310R - 1 pc
- Hard drives - none
- Power supply unit 550W - 2 pcs (redundant)
- Hot-swap bays for 2.5" hard drives - 10 pcs
- Mounting bracket for 19" rack - 1 pc
- Processor - none
- Processor heatsink - 2 pcs
- PCI-E x16 riser card - 2 pcs
Options:
- Power supplies up to 1600W
Important: When installing a hardware RAID controller, it is necessary to add 3 cables HDmSAS-HDmSAS 1m.
Technical Specifications
- 10/100/1000BaseT interfaces 2
- M.2 supported (1) 2280
- NVDIMM supported Yes
- Processor type 3 Gen Intel Xeon Scalable
- DCPMM supported Yes
- Multi-operated caddy, 2.5/3.5" Available
- Number of PCI-E slot 2
- M.2 supported 2
- Supported ECC memory Available
- TDP of heatsink 270
- Power supply 2
- Device type (1) Server platform
- Socket LGA 4189
- Voltage range ~220V AC
- Management port 10/100/1000BaseT
-
Operating temperature range, °C
5
35 - Slots 2.5" 10
- Type of SSD/HDD SATA
- Weight, kg (3) 25
- Power supply capacity, W 550
- RAM (2) DDR4
-
Product specifications
SATA, 2x1GBaseT, 2xPSU
Server platform SNR-SR1310RS, 1U, 2xFCLGA4189, 32xDDR4, 10x2.5&
amp
quot - PCI-E FH/HL x16 1
- Motherboard chipset Intel C621A
- Form factor (1) 1U
- Number of backplane ports 3
- Availability caddy Yes
- Number of front bay HHD/SSD 10
- PCI-E slots FH/HL x16
- Form factor for hard drive bays SFF 2,5"
- Number of RAM slots supported by one processor 16
- Number of CPU socket 2
- Availability rails for installation in a 19U cabinet Available
- Max amount of RAM, TV 12
- Number of RAM slots 32
- Type of installed radiators Standard efficiency radiator
- Key M-Key
