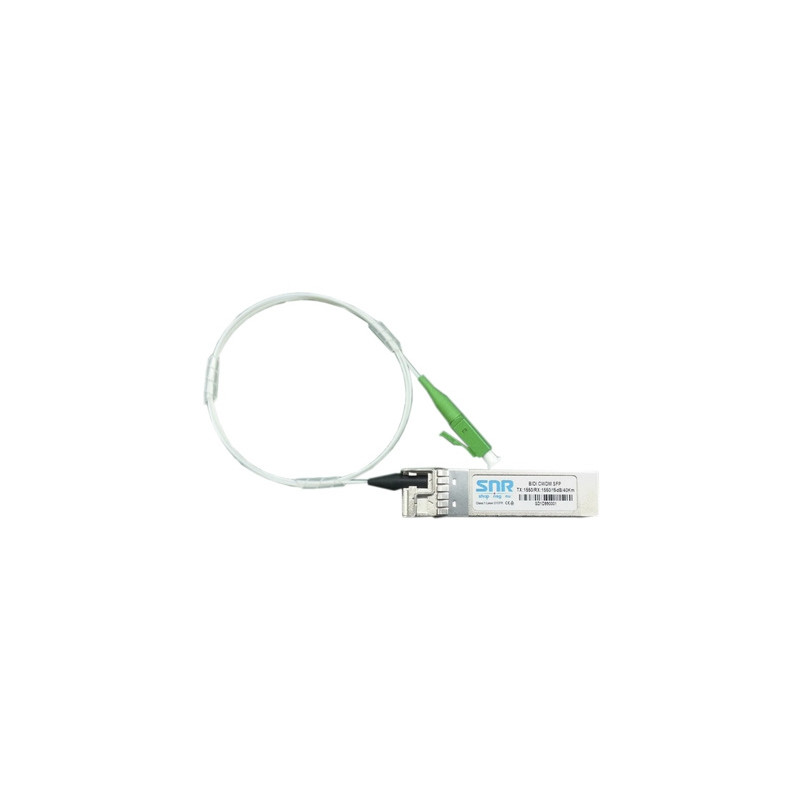

Module SFP 1.25G CWDM BIDI, Tx/Rx 1390nm, LC/APC, DDMI, 40km (16dB)
SNR-SFP-BIDI-C39-40
$ 236.12
Single-mode SFP CWDM 1000Base-EX module, LC/APC connector, operating wavelength of 1390nm in both directions, distance up to 40km (16dB).
Technical Specifications
- Transceiver speed 1Gbps
- Transceiver type BiDi CWDM
- Type of optical fiber SMF
- Connector type LC
- Max distance 40
- Wavelength TX, nm 1390
- Wavelength RX, nm 1390
- Optical budget, dB 16
Product Info
Part number: SNR-SFP-BIDI-C39-40A single-fiber optical BIDI CWDM module with an SFP form factor for 1G Ethernet, compliant with the 1000Base-EX standard. Designed to operate on single-mode fiber (SMF) with a maximum distance of 40km, an optical budget of 16dB, an LC/APC simplex male connector, and compliance with the SFF-8431 Multisource Agreement (MSA).
Main technical specifications:
| Transmit wavelength Tx, nm | 1390 |
| Laser type | DFB |
| Output power, dBm | -7..-2 |
| Receiver type | APD |
| Receiver sensitivity, dBm | -23 |
| Maximum allowable input power to the receiver,dBm | 0 |
| Maximum transmission distance, km | 40 |
| Optical budget, dB | 16 |
| Hot-swappable support | + |
| DDMI (Digital Diagnostic Monitoring Interface) support | + |
| Connector type | LC/APC |
| Operating temperature range, C | -5..+85 |
Technical Specifications
- Transceiver speed 1Gbps
- Transceiver type BiDi CWDM
- Type of optical fiber SMF
- Connector type LC
- Max distance 40
- Wavelength TX, nm 1390
- Wavelength RX, nm 1390
- Optical budget, dB 16
- Receiver sensitivity, dBm -23
- Form-factors transceivers SFP transceiver
- Transmission distance (range), km 20-40
